Hub Adapter: Cast Iron, Hub Inlet w/Male Threaded Outlet

Specification

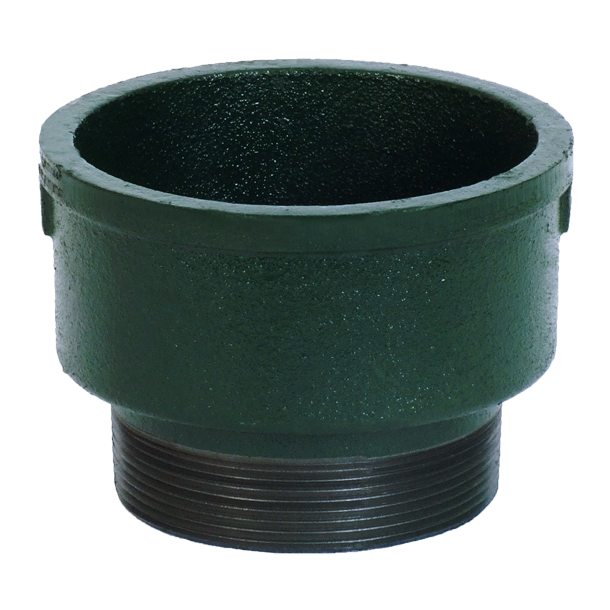

88560 Series coated cast iron Hub Adapter with standard cast iron soil pipe hub and male threaded outlet.

Options
-40Galvanized Cast Iron Parts

Type # PIPE SIZE  B  C  D  E  LBS
88562 2 3 3-7/8 4 2-1/4 4
88563 3 4-1/4 5-1/8 4-1/4 2-3/8 5
88564 4 5-1/4 6-1/8 4-3/8 2-3/8 6
88565 5 6-1/4 7-1/8 4-3/8 2-3/8 7
88566 6 7-1/4 8 4-3/8 2-3/8 8
88568 8 9-1/4 10-1/2 4-3/8 2-1/4 11
