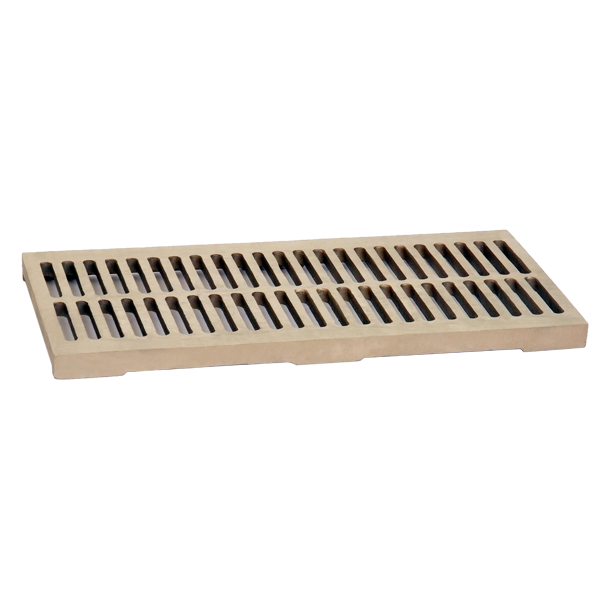

Trench Grate: Medium-Duty Rectangular Nikaloy Grate

Specification
76500-1 Series Nikaloy rectangular medium-duty sectional Trench Grate and available stainless steel frame (when specified), 12" x 24" with 1/2" x 4-3/8" grate openings.

Options
-VPSecured Grate, Vandal-Proof Screws -8-2All Bronze with Satin Finish Top

Type # C LENGTH  LBS
76500-1 24" 40
76501-1 24-5/8" 57
76502-1 48-5/8" 108
76602-1 24-5/8" 103
