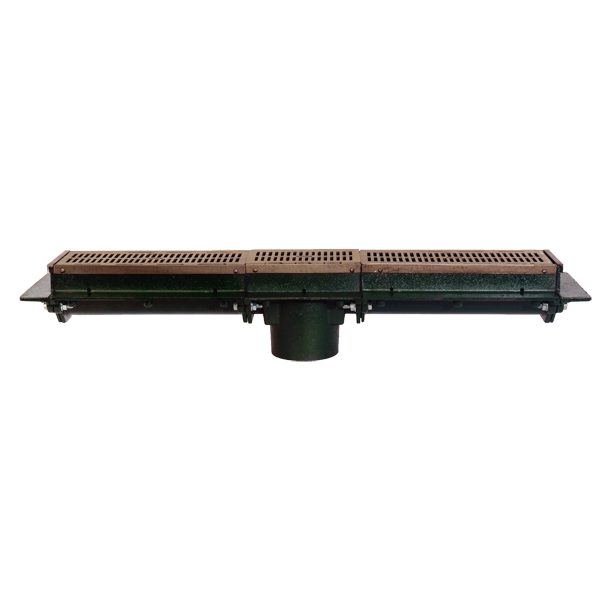

Trench Drain: Super-Flo 6 inch wide, Rectangular with Nikaloy Top

Specification
76000-1 Series coated cast iron rectangular sectional Trench Drain with heavy-duty body sections and integral anchor flange, Nikaloy rim, heavy-duty loose-set SUPER-FLO Nikaloy Grates with perimeter drainage slots, 1-11/16" x 1/4" grate slot openings, secondary loose-set dome strainer and bottom outlet.

Options
-VP	Secured Grate, Vandal-Proof Screws	-40	Galvanized Cast Iron Parts
-2	Satin Finish Bronze Top	-7	Ductile Iron Grate
-30	Flashing Clamp Device

Type #	PIPE SIZE	WT LBS OUTLET	WT LBS EXTENSION
76002	2"	32	32
76003	3"	32	32
76004	4"	32	32
