Oil Separator: Large Capacity Draw-Off Type with Extension

Specification

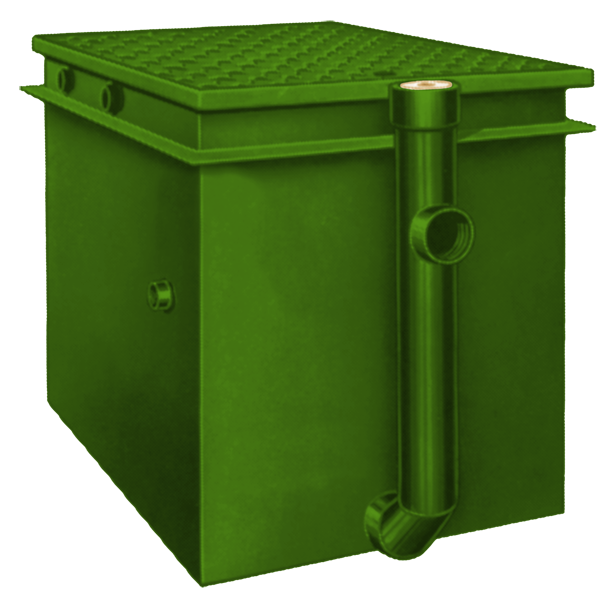

JOSAM 60610A-EXT Series epoxy coated fabricated steel high volume Oil Separator, threaded connections, deep roughing, integral extension, visible double wall trap, sediment bucket, adjustable gravity draw-off either side, two vent connections on each side, gasketed non-skid cover and flow control fitting.

Options
-HD	Heavy-Duty Cover	-61	Flange and Clamp Device
-60	Anchor Flange

Type #	LLOW GPM	PIPE SIZE
60611A-EXT	75	3
60612A-EXT	100	4
60613A-EXT	150	4
60614A-EXT	200	5
60615A-EXT	250	5
60616A-EXT	350	6
60617A-EXT	500	6
