Oil Separator: Gravity Draw-Off Type with Extension

Specification

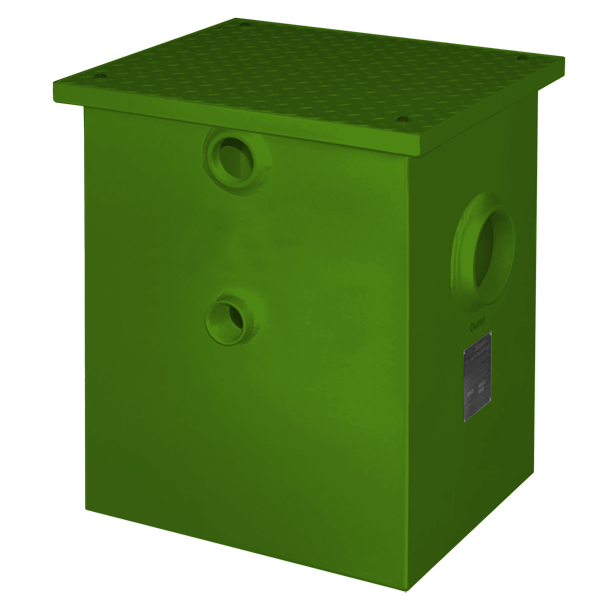

JOSAM 60500B-EXT Series epoxy coated fabricated steel Oil Separator, threaded connections, deep roughing, integral extension, internal trap, sediment bucket, two vent connections, gasketed non-skid cover and flow control fitting.

Options
-HD	Heavy-Duty Cover	-61	Flange and Clamp Device
-60	Anchor Flange

Type #	FLOW GPM	PIPE SIZE
60503B-EXT	10	2
60504B-EXT	15	2
60505B-EXT	20	3
60506B-EXT	25	3
60507B-EXT	35	3
60508B-EXT	50	3
