Floor Sink: 8" Round A.R.E. Top, 6" Deep with Drainage Flange

Specification

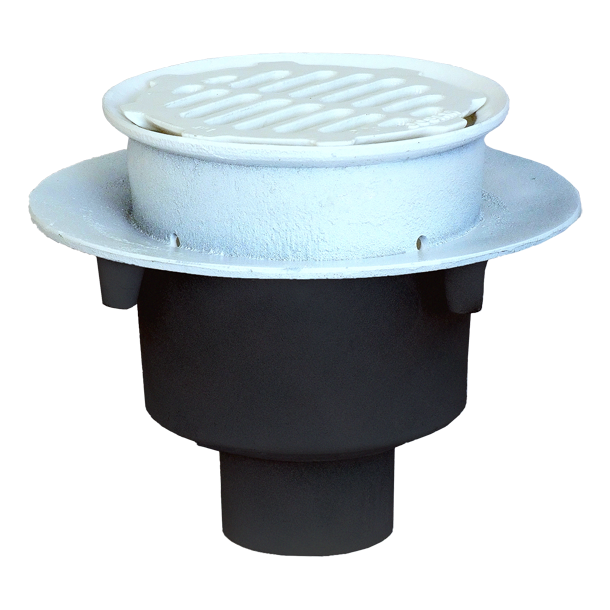

49520A Series round cast iron 6" deep SUPER-FLO-SEPTOR Floor Sink with acid-resisting interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, and cast iron, non-traffic, acid-resisting, anti-tilting grate.

Options
-C	Clamp Device	-35	Stainless Steel Mesh Bucket Liner
-LF	Less Flange	-4	3/4 Grate
-LG	Less Grate	-43	Internal Dome Str (A.R. Finish CI)
-NB	Nickel Bronze Traffic Top	-45	Less Internal Dome Strainer (Alum)
-TSI	Trap Seal Insert	-51	Galvanized C.I. Inside and Outside
-VP	Secured Grate, Vandal-Proof Screws, NB	-52	Painted Inside and Outside
-16	Grate with 4 Inch Round Funnel	-55	1/2 Inch Primer Tap
-17	Grate with 6 Inch Round Funnel	-7	Full Grt w/2-1/2 In. Center Opening
-18	Grt w/9 In. x 3-1/2 In. Oval Funnel	-8	Depressed Grate
-3	1/2 Grate
-31	Sediment Bucket (Aluminum)	-X	Inside Caulk Outlet
-33	Sediment Bucket (A.R. Finish C.I.)	-Z	No-Hub Spigot Outlet

Type #	PIPE SIZE	LBS
49522A	2	18
49523A	3	19
49524A	4	21
