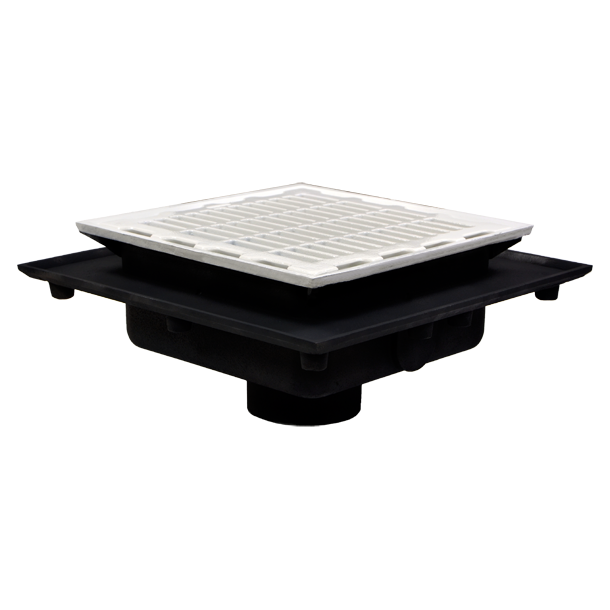

Floor Sink: 16" Square A.R.E. Top, 6" deep with Drainage Flange

Specification
49400 Series square cast iron 6" deep SUPER-FLO-SEPTOR Floor Sink with acid-resisting interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, and cast iron, non-traffic, acid-resisting, anti-tilting SUPER-FLO Grate.

Options
-C	Clamp Device	-33	Sediment Bucket (A.R. Finish C.I.)
-LF	Less Flange	-35	Stainless Steel Mesh Bucket Liner
-LG	Less Grate	-4	3/4 Grate
-NB	Nickel Bronze Traffic Top	-43	Internal Dome Str (A.R. Finish CI)
-TSI	Trap Seal Insert	-45	Less Internal Dome Strainer (Alum)
-VP	Secured Grate, Vandal-Proof Screws, NB	-55	1/2 Inch Primer Tap
-16	Grate with 4 Inch Round Funnel	-7	Full Grt w/2-1/2 In. Center Opening
-17	Grate with 6 Inch Round Funnel	-8	Depressed Grate
-18	Grt w/9 In. x 3-1/2 In. Oval Funnel
-3	1/2 Grate	-X	Inside Caulk Outlet
-31	Sediment Bucket (Aluminum)

Type #	PIPE SIZE	LBS	B DIM
49403	3	99	9-1/4
49404	4	96	9-1/2
49406	6	97	9-7/8
