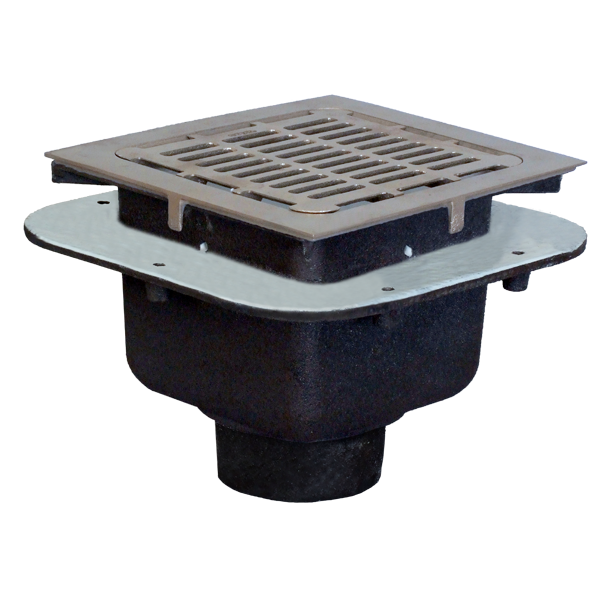

Floor Sink: 12" Square Nikaloy Top, 8" Deep with Drainage Flange

Specification
49340A-NB Series square cast iron 8" deep SUPER-FLO-SEPTOR Floor Sink with porcelain coated interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, Nikaloy sanitary sloped rim and Nikaloy light-duty anti-tilting SUPER-FLO grate. (A.R.E. acid resisting epoxy coating provided for domestic content requirements).

Options
-C	Clamp Device	-35	Stainless Steel Mesh Bucket Liner
-HG	Hinged Grate NB	-4	3/4 Grate
-LG	Less Grate	-43	Internal Dome Str (A.R. Finish CI)
-VP	Secured Grate, Vandal-Proof Screws, NB	-45	Less Internal Dome Strainer (Alum)
-15	Stainless Steel Rim and Grate	-5	Nikaloy Extra Heavy Duty Grate/Rim
-16	Grate with 4 Inch Round Funnel	-55	1/2 Inch Primer Tap
-17	Grate with 6 Inch Round Funnel	-7	Full Grt w/2-1/2 In. Center Opening
-18	Grt w/9 In. x 3-1/2 In. Oval Funnel	-8	Depressed Grate
-20	Solid Nikaloy Cover
-24	Chained Grate	-X	Inside Caulk Outlet
-3	1/2 Grate	-Y	Hub Outlet w/Gasket, 2"-4"
-31	Sediment Bucket (Aluminum)	-Z	No-Hub Spigot Outlet
-33	Sediment Bucket (A.R. Finish C.I.)

Type #	PIPE SIZE
49342A-NB	2"
49343A-NB	3"
49344A-NB	4"
