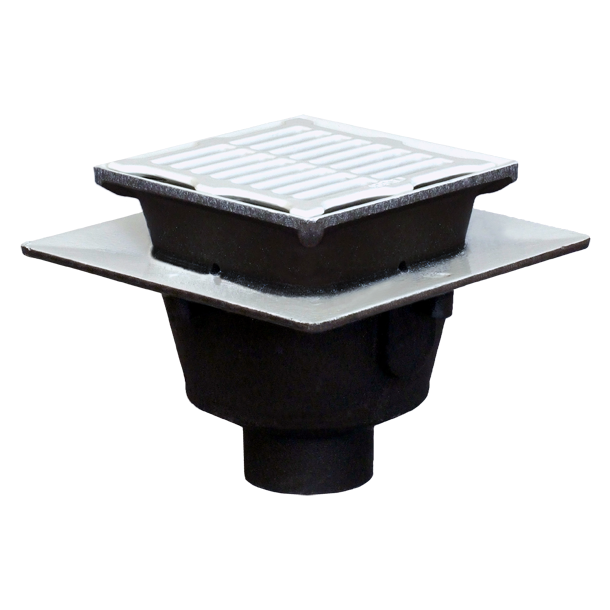

Floor Sink: 8" Square Top, 6" deep with Drainage Flange

Specification
49300 Series square cast iron 5-7/8" deep SUPER-FLO-SEPTOR Floor Sink with acid-resisting porcelain coated interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, and porcelain coated cast iron, non-traffic, acid-resisting, anti-tilting SUPER-FLO Grate. (A.R.E. acid resisting epoxy coating provided for domestic content requirements).

Options
-C	Clamp Device	-31	Sediment Bucket (Aluminum)
-LF	Less Flange	-33	Sediment Bucket (A.R. Finish C.I.)
-LG	Less Grate	-35	Stainless Steel Mesh Bucket Liner
-NB	Nickel Bronze Traffic Top	-4	3/4 Grate
-NB-HG	Hinged Nikaloy Grate	-43	Internal Dome Str (A.R. Finish CI)
-TSI	Trap Seal Insert	-45	Less Internal Dome Strainer (Alum)
-VP	Secured Grate, Vandal-Proof Screws, NB	-55	1/2 Inch Primer Tap
-16	Grate with 4 Inch Round Funnel	-7	Full Grt w/2-1/2 In. Center Opening
-17	Grate with 6 Inch Round Funnel	-8	Depressed Grate
-18	Grt w/9 In. x 3-1/2 In. Oval Funnel
-20	Solid Nikaloy Cover	-X	Inside Caulk Outlet
-24	Chained Grate	-Y	Hub Outlet w/Gasket, 2"-4"
-3	1/2 Grate	-Z	No-Hub Spigot Outlet

Type #	PIPE SIZE	LBS
49302	2	24
49303	3	24
49304	4	24
