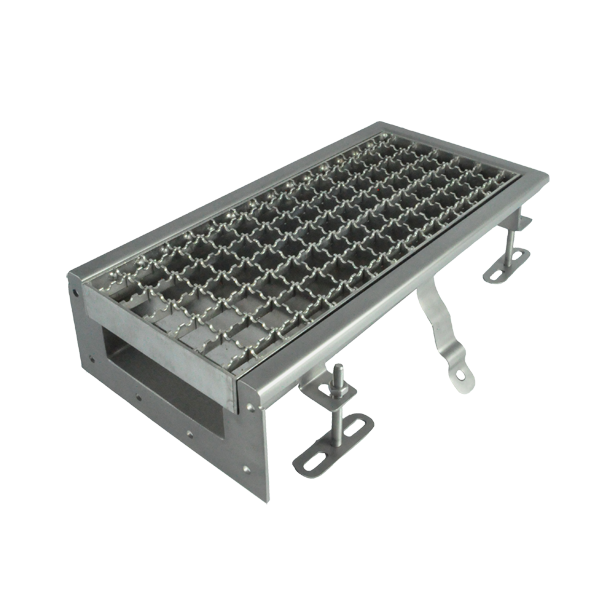

46400 SERIES STAINLESS STEEL TRENCH DRAIN 8" WIDE WITH SS GRATING.

Specification
Josam series 46400 fabricated stainless steel (type 304, 2mm THK), 8" wide, v-shaped bottom, available with or without slope (1% STD), with anchor tabs and leveling feet, bottom outlet and grate options. Run lengths longer than 13' provided with flanges and gaskets.

Options
-BW	Butt-Weld Outlet (avail 10,40,80)	-T	Threaded Outlet
-FB	Filter Basket	-VP	Secured Grate
-FC	Anchor Flange and Clamp	-316	Type 316L Material
-SB	Sediment Bucket	TD.LENGTH	Total Run Length

Type #	GRATE TYPE
46412	REINFORCED
46413	"
46414	"
46422	ANTI-SLIP MESH
46423	"
46424	"
46432	SOLID/PERIMETER
46433	"
46434	"
46442	LADDER
46443	"
46444	"
