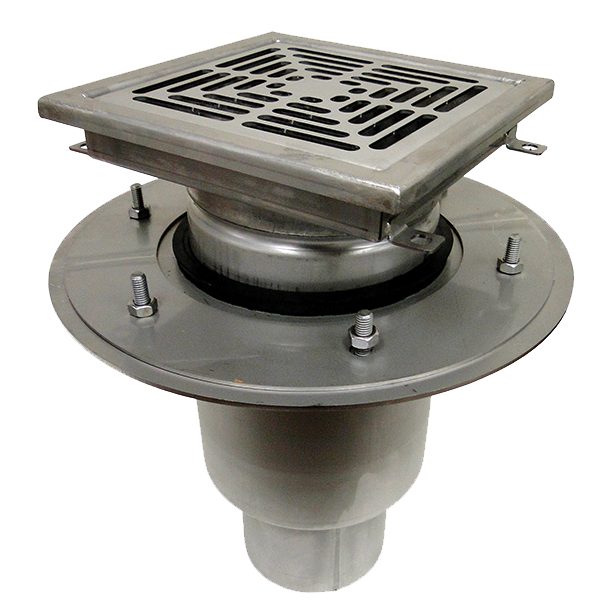

Stainless Steel (304) Floor Drain, 8" Square Adjustable Top, 10" Max Depth

Specification
JOSAM 43450 Series Stainless Steel (304) Floor Drain, 8" Square Adjustable Top, 10" Maximum Depth, No-Hub Outlet.

Options
-DB	Dome Bottom Strainer	-3Q	3/4 Reinforced Perf. Grate
-FB	Filter Basket	-316	316 Stainless Steel
-HG	1/2 Reinforced Perf. Grate	-50	1/2" Primer Tap
-LG	Ladder Grate
-MG	Anti-Slip Mesh Grate	-NH	No-Hub Outlet
-NG	No Grate	-T	Threaded Outlet
-SB	Sediment Bucket	TSO	Threaded Side Outlet
-SG	Perimeter Slot Plate Grate	ZSO	No-Hub Side Outlet
-VP	Secured Grate

Type #	PIPE SIZE NOM	D	H	H1	H2	W
43452	2"	6.2" (157MM)	6.7" (170MM)	3.0" (75MM)	2.0" - 3.9"	7.8" (197MM)
43453	3"	6.2" (157MM)	6.7" (170MM)	3.0" (75MM)	2.0" - 3.9"	7.8" (197MM)
43454	4"	6.2" (157MM)	6.7" (170MM)	3.0" (75MM)	2.0" - 3.9"	7.8" (197MM)
					(50MM - 100MM)
