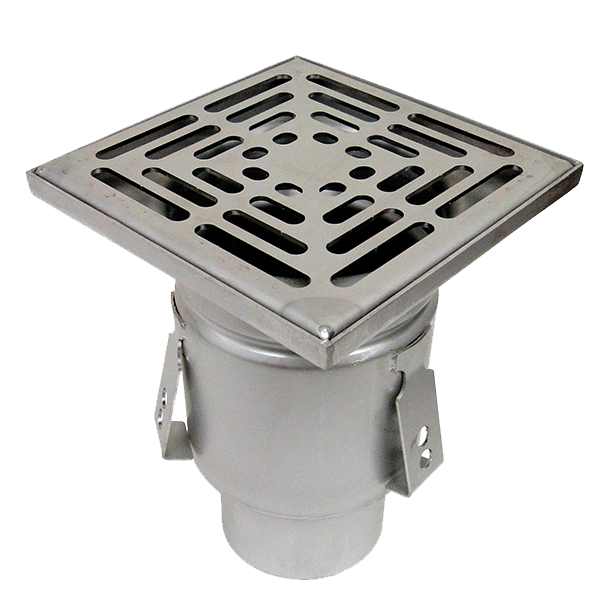

Stainless Steel (304) Floor Drain, 12" X 12" Square Top, 10" Deep, No-Hub Outlet

Specification
JOSAM 41650 Series Stainless Steel (304) Floor Drain, 12" X 12" Square Top, 10" Deep, No-Hub Outlet

Options
-CF	Flange w/Membrane Clamp	-VP	Secured Grate
-DB	Dome Bottom Strainer	-3Q	3/4 Reinforced Perf. Grate
-FB	Filter Basket	-316	316 Stainless Steel
-HG	1/2 Reinforced Perf. Grate	-50	1/2" Primer Tap
-LG	Ladder Grate
-MG	Anti-Slip Mesh Grate	-NH	No-Hub Outlet
-NG	No Grate	-T	Threaded Outlet
-SB	Sediment Bucket	TSO	Threaded Side Outlet
-SG	Perimeter Slot Plate Grate	ZSO	No-Hub Side Outlet
-SPG	Slotted Plate Grate

Type #	PIPE SIZE NOM.	D	H	H1	W
41653	3"	10.0" (255MM)	9.6" (244MM)	3.7" (95MM)	11.7" (297MM)
41654	4"	10.0" (255MM)	9.6" (244MM)	3.7" (95MM)	11.7" (297MM)
41656	6"	10.0" (255MM)	9.6" (244MM)	3.7" (95MM)	11.7" (297MM)
