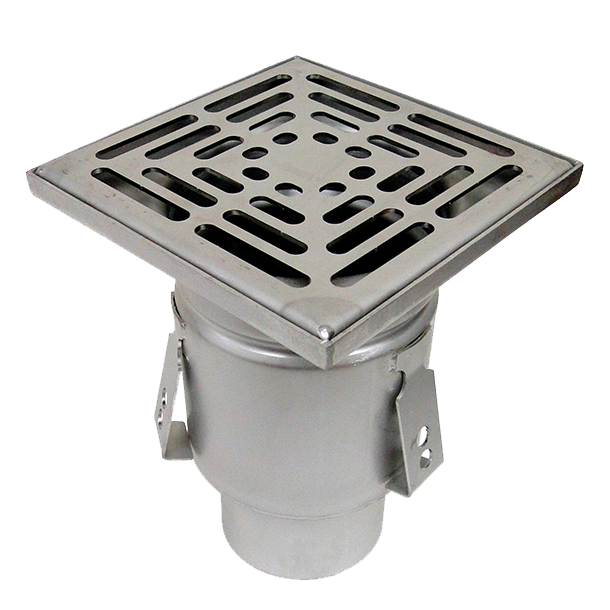

Stainless Steel (304) Floor Drain, 10" X 10" Square Top, 6" Deep, No-Hub

Specification
JOSAM 41530 Series Stainless Steel (304) Floor Drain, 10" X 10" Square Top, 6" Deep, No-Hub Outlet

Options
-CF	Flange w/Membrane Clamp	-SG	Perimeter Slot Plate Grate
-DB	Dome Bottom Strainer	-VP	Secured Grate
-FB	Filter Basket	-3Q	3/4 Reinforced Perf. Grate
-HG	1/2 Reinforced Perf. Grate	-316	316 Stainless Steel
-LG	Ladder Grate	-50	1/2" Primer Tap
-MG	Anti-Slip Mesh Grate
-NG	No Grate	-NH	No-Hub Outlet
-SB	Sediment Bucket	-T	Threaded Outlet

Type #	PIPE SIZE NOM.	D	H	H1	W
41532	2"	7.6" (193MM)	6.1" (154MM)	3.0" (75MM)	9.7" (247MM)
41533	3"	7.6" (193MM)	6.1" (154MM)	3.0" (75MM)	9.7" (247MM)
41534	4"	7.6" (193MM)	6.1" (154MM)	3.0" (75MM)	9.7" (247MM)
