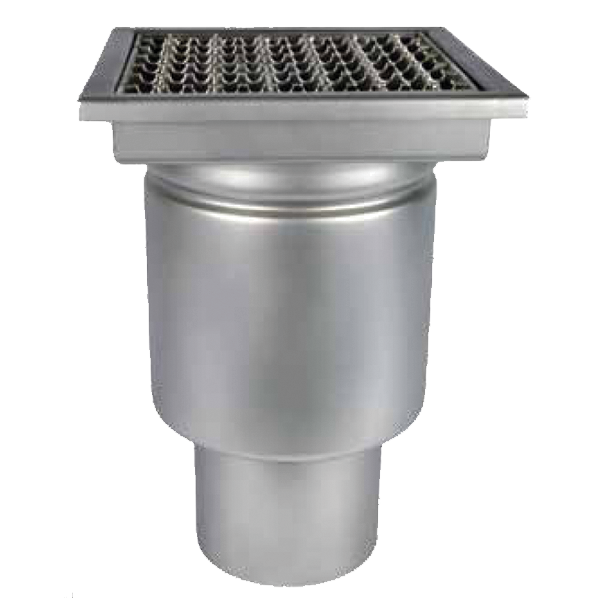

Series Stainless Steel (304) Floor Drain, 8" X 8" Square Top, 8" Deep, No-Hub

Specification
JOSAM 41440 Series Stainless Steel (304) Floor Drain, 8" X 8" Square Top, 8" Deep, No-Hub Outlet

Options
-CF	Flange w/Membrane Clamp	-VP	Secured Grate
-DB	Dome Bottom Strainer	-3Q	3/4 Reinforced Perf. Grate
-FB	Filter Basket	-316	316 Stainless Steel
-HG	1/2 Reinforced Perf. Grate	-50	1/2" Primer Tap
-LG	Ladder Grate
-MG	Anti-Slip Mesh Grate	-NH	No-Hub Outlet
-NG	No Grate	-T	Threaded Outlet
-SB	Sediment Bucket	TSO	Threaded Side Outlet
-SG	Perimeter Slot Plate Grate	ZSO	No-Hub Side Outlet

Type #	PIPE SIZE NOM.	D	H	H1	W
41442	2"	6.2" (157MM)	8.0" (204MM)	3.0" (75MM)	7.8" (197MM)
41443	3"	6.2" (157MM)	8.0" (204MM)	3.0" (75MM)	7.8" (197MM)
41443	4"	6.2" (157MM)	8.0" (204MM)	3.0" (75MM)	7.8" (197MM)
