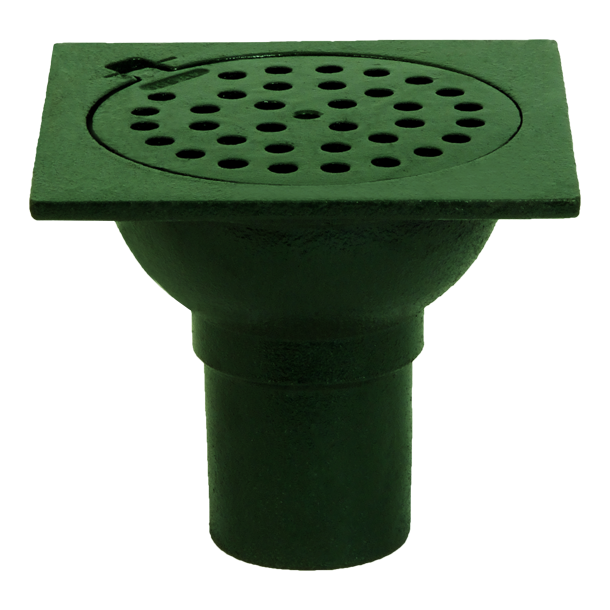

Floor Drain: Cast Iron Square Top w/Hinged Grate

Specification
39960 Series coated cast iron Floor Drain, bottom outlet, inside caulk connection, square top and round hinged grate.

Options
-ARE	Acid-Resisting Epoxy	-92	Galvanized Cast Iron Parts
-TSI	Trap Seal Insert
-VP	Secured Grate, Vandal-Proof Screws	-X	Inside Caulk Outlet

Type #	PIPE SIZE	B	D	F	FREE AREA	LBS
39962	2	6	4-7/8	4-1/2	3.0	6
39963	3	9	7-3/8	6-1/8	6.6	14
