Floor Drain: 11" Dia. C.I. Top w/Composition Deck Flange & Bucket

Specification

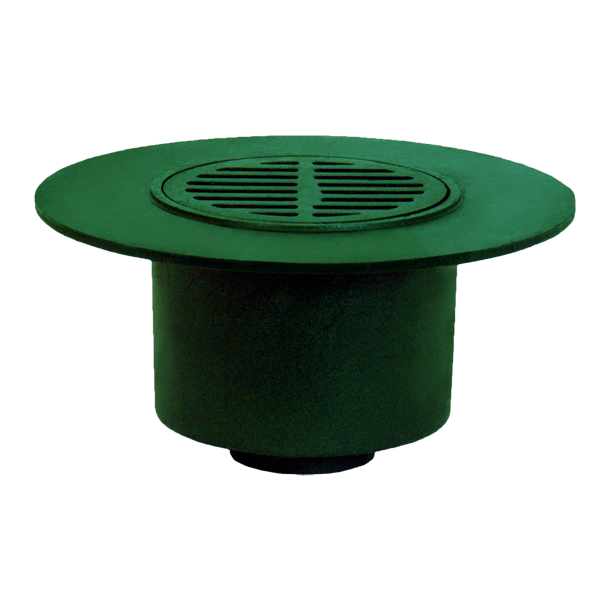

39720 Series coated cast iron area drain with composition deck flange, bottom outlet, 11" round top, heavy-duty, loose-set grate and removable sediment bucket.

Options
-TSI	Trap Seal Insert	-7	Ductile Iron Grate
-VP	Secured Grate, Vandal-Proof Screws	-70	Less Bucket
-1	Satin Finish Nikaloy Top	-84	S.S. Mesh Bucket Liner
-13	Dome Grate, Cast Iron	-92	Galvanized Cast Iron Parts
-13-1	Dome Grate, Nikaloy
-13-2	Dome Grate, Bronze	-T	Threaded Outlet
-15	Chained Grate	-X	Inside Caulk Outlet
-2	Satin Finish Bronze Top

Type #	PIPE SIZE	LBS
39722	2	65
39723	3	65
39724	4	65
