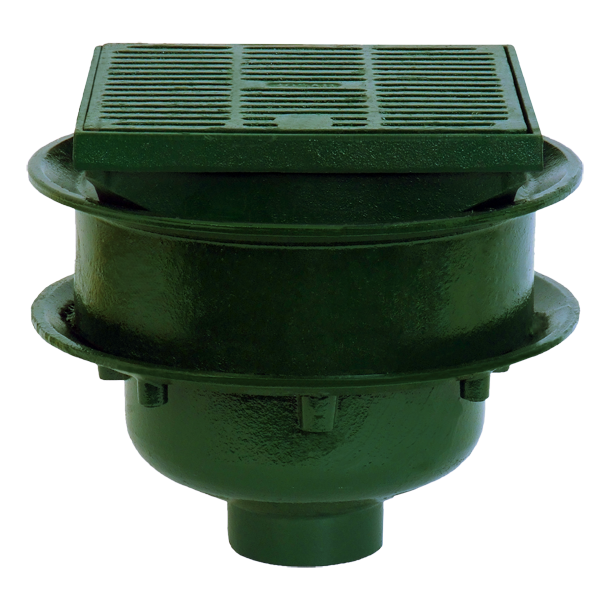

Floor Drain: 12" Square Top w/Heavy Duty Secured C.I. Grate & Bucket

Specification
37840 Series coated cast iron Floor Drain with tdouble drainage flange, seepage slots, bottom outlet, square top, heavy-duty secured grate and removable sediment bucket. Top frame serves as clamp ring.

Options
-TSI	Trap Seal Insert	-70	Less Bucket
-VP	Secured Grate, Vandal-Proof Screws	-84	S.S. Mesh Bucket Liner
-14	Hinged Grate	-88	Supplementary Strainer
-19	C.I. Undergrate w/Satin Fin Nik Top	-92	Galvanized Cast Iron Parts
-20	C.I. Undergrate w/Satin Fin Brz Top
-39	Solid Cast Iron Cover	-X	Inside Caulk Outlet
-49	3/4 Inch Primer Tap	-Z	No-Hub Spigot Outlet
-50	1/2 Inch Primer Tap	-66	No-Hub Side Outlet
-7	Ductile Iron Grate

Type #	PIPE SIZE	LBS
37842	2	75
37843	3	75
37844	4	75
37845	5	75
37846	6	75
37848	8	75
