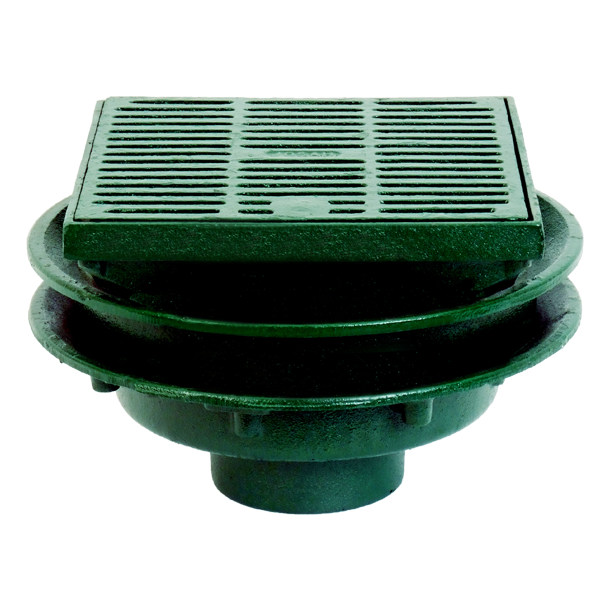

Floor Drain: 12-1/4" X 12" C.I. Top w/Hinged Latching Grate & Bucket

Specification
37830 Series coated cast iron Floor Drain with double drainage flange, seepage slots, bottom outlet, square top, heavy-duty, hinged latching grate and removable sediment bucket.

Options
-TSI	Trap Seal Insert	-69	Lift Handle for Sediment Bucket
-19	C.I. Undergrate w/Satin Fin Nik Top	-7	Ductile Iron Grate
-20	C.I. Undergrate w/Satin Fin Brz Top	-84	S.S. Mesh Bucket Liner
-21	Loose-Set Grate	-92	Galvanized Cast Iron Parts
-22	Less Locking Device
-39	Solid Cast Iron Cover	-X	Inside Caulk Outlet
-49	3/4 Inch Primer Tap	-Z	No-Hub Spigot Outlet
-50	1/2 Inch Primer Tap	-66	No-Hub Side Outlet

Type #	PIPE SIZE	LBS
37832	2	73
37833	3	74
37834	4	74
37835	5	74
37836	6	74
