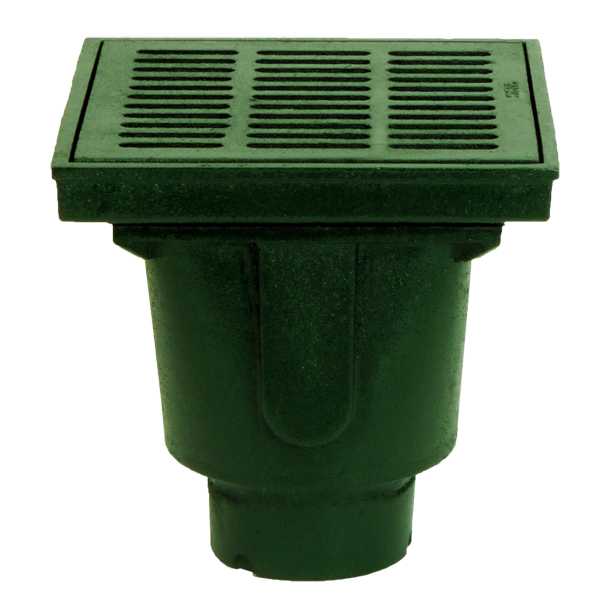

Floor Drain: 10" Square Top w/Medium Duty C.I. Tractor Grate & Bucket

Specification
35170 Series coated cast iron Floor Drain, bottom outlet, square top, medium-duty, loose-set tractor grate and removable bucket.

Options
-AREAcid-Resisting Epoxy -70Less Bucket
-TSITrap Seal Insert -84S.S. Mesh Bucket Liner
-VPSecured Grate, Vandal-Proof Screws -88Supplementary Strainer
-1Satin Finish Nikaloy Top -92Galvanized Cast Iron Parts
-15Chained Grate
-2Satin Finish Bronze Top -XInside Caulk Outlet
-493/4 Inch Primer Tap -ZNo-Hub Spigot Outlet
-501/2 Inch Primer Tap

Type # PIPE SIZE  LBS
35173 3 44
35174 4 44
