Floor Drain: Deep Sump w/Non-Clog 21" Top & 10-1/2" Deep Bucket

Specification

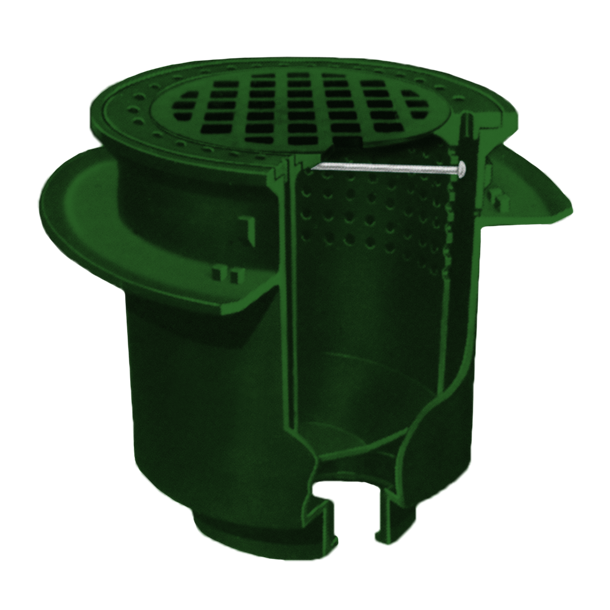

34920 Series coated cast iron Floor Drain with double drainage flange, weepholes, bottom outlet, round top and removable sediment bucket designed so that extra heavy-duty NON-CLOG grate cannot be replaced unless bucket is in position.

Options
-C	Bolted Flashing Clamp Device	-49	3/4 Inch Primer Tap
-TSI	Trap Seal Insert	-50	1/2 Inch Primer Tap
-VP	Secured Grate, Vandal-Proof Screws	-80	Perforated Stainless Steel Basket
-12	Square Top, Cast Iron	-84	S.S. Mesh Bucket Liner
-12-1	Square Top, Nikaloy	-92	Galvanized Cast Iron Parts
-12-2	Square Top, Bronze
-15	Chained Grate	-T	Threaded Outlet
-19	C.I. Undergrate w/Satin Fin Nik Top	-X	Inside Caulk Outlet
-20	C.I. Undergrate w/Satin Fin Brz Top	-66	No-Hub Side Outlet

Type #	PIPE SIZE	E	F	LBS
34923	3	14-3/4	16-7/8	253
34924	4	14-3/4	16-3/4	253
34925	5	15	16-7/8	253
34926	6	15	17-3/4	253
34928	8	15-1/4	17-3/4	253
