Josam  /  Products
Product Image

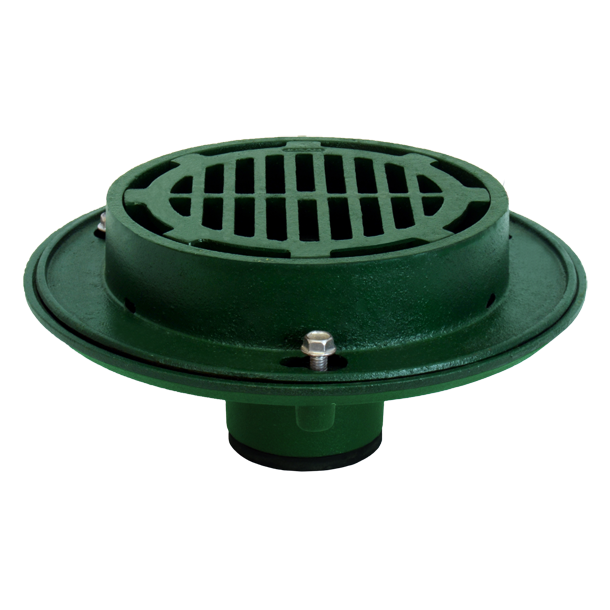

32100 Series

Floor Drain: w/C.I. Super-Flo 9" Round Top

Specification
32100 Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC non-puncturing flashing collar, weepholes, bottom outlet, round top, medium-duty loose-set anti-tilting SUPER-FLO grate with perimeter drainage slots.

Application

Product Details
Parts
List
Submittal Sheets
CAD Drawings
Resource Center
Price
Item
Domestic Content Message
OPTIONS
-AELEVELEZE Adjustable Extension -15Chained Grate
-AREAcid-Resisting Epoxy -2Satin Finish Bronze Top
-HPHeel-Proof Cast Iron Grate -39Solid Cast Iron Cover
-HP-7Heel-Proof Ductile Iron Grate -44Fixed Extension Collar, Cast Iron (spec. ht.)
-LC1Locking Cover, Satin Finish Nikaloy -44-92Fixed Extension Collar, Galv. (spec. hgt.)
-LC2Locking Cover, Satin Finish Bronze -493/4 Inch Primer Tap
-PFBPre-Fabricated Base -501/2 Inch Primer Tap
-TG-CITractor Grate, Cast Iron -7Ductile Iron Grate
-TG-1Tractor Grate, Satin Finish Nikaloy -81Slotted Cast Iron Bucket
-TG-19Laminate Tractor Grate, Satin Finish Nikaloy -84S.S. Mesh Bucket Liner
-TG-2Tractor Grate, Satin Finish Bronze -88Supplementary Strainer
-TG-7Tractor Grate, Ductile Iron -92Galvanized Cast Iron Parts
-TSITrap Seal Insert
-VPSecured Grate, Vandal-Proof Screws -TThreaded Outlet
-1Satin Finish Nikaloy Top -XInside Caulk Outlet
-11Extra Heavy Grate, Cast Iron -YHub Outlet w/Gasket, 2"-4"
-13Dome Grate, Cast Iron -ZNo-Hub Spigot Outlet
-13-1Dome Grate, Nikaloy -66No-Hub Side Outlet
-13-2Dome Grate, Bronze
TYPE # PIPE SIZE  LBS
32102 2 18
32103 3 21
32104 4 21
32106 6 25

Cross Reference Guides

This cross reference guide offers the best cross reference from other drain manufacturer’s products to a Josam equivalent series. You may need to add options to the Josam series to match the other manufacturer’s options. In some cases, adding options on a competitor’s model will require a different Josam series than the one selected in this chart. If you need assistance with product cross reference, please contact  Josam Customer Service.

JR Smith

Mifab

Wade

Watts

Zurn
