Floor Drain: C.I. Body w/Integral Trap, Floor C.O. & Nikaloy Strainer

Specification

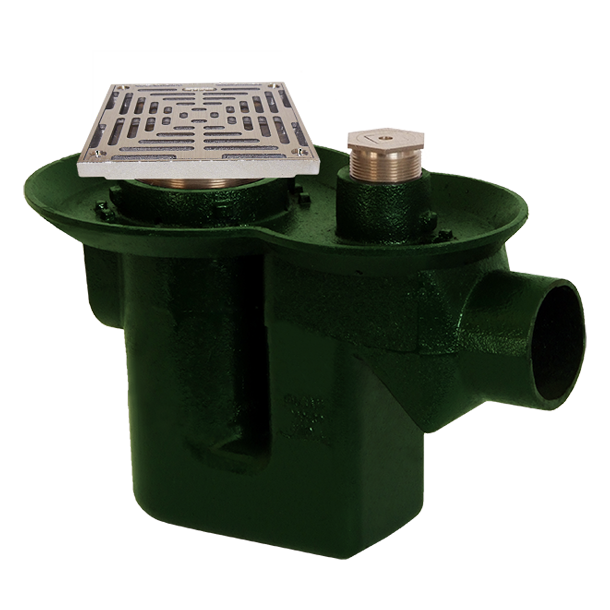

30500-S Series coated cast iron combination Floor Drain and integral deep drum "P" trap with double drainage flange, weepholes, side outlet, Nikaloy integral flush-with-floor cleanout and adjustable satin Nikaloy square SUPER-FLO strainer.

Options
-2	Satin Finish Bronze Top	-60	Backwater Valve
-41	Flashing Clamp Device	-80	Perforated Stainless Steel Basket
-49	3/4 Inch Primer Tap	-92	Galvanized Cast Iron Parts
-50	1/2 Inch Primer Tap
-51	1-1/2 Inch Auxiliary Threaded Inlet	-Z	No-Hub Spigot Outlet
-52	2 Inch Auxiliary Threaded Inlet

Type #	PIPE SIZE	J J	TYPE NO.	B B	X X	Y Y
30502	2	3	5S	5	1-1/4	2
30503	3	3-1/2	6S	6	1-1/2	2-1/4
30504	4	4-1/8	8S	8	2	2-5/8
