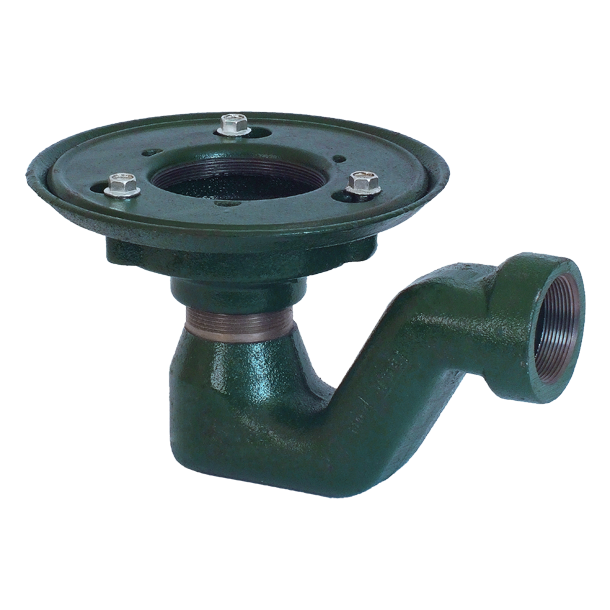

Floor Drain: Body Assembly with Shallow Trap

Specification
Josam 30002-ST Series coated cast iron Floor Drain, two piece body with double drainage flange and 1/2 inch primer tap with plug, WEJLOC invertible non-puncturing flashing collar with weep-holes, threaded to receive any Josam adjustable strainer, bottom outlet threaded connection to low profile p-trap.

Options
-ARE	Acid-Resisting Epoxy
-TSI	Trap Seal Insert	-T	Threaded Outlet
-49	3/4 Inch Primer Tap	-Z	No-Hub Spigot Outlet
-92	Galvanized Cast Iron Parts

Type #	PIPE SIZE
30002-ST	2"
30003-ST	3"
