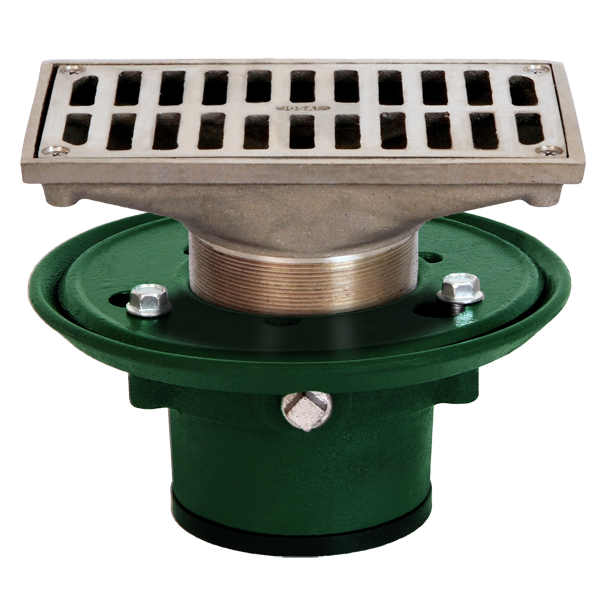

Floor Drain: C.I. Body w/Rectangular Nikaloy Strainer

Specification
30000-R Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy rectangular strainer.

Application
For use in shower rooms gutters and similar areas where a large grate free area is required and limited width is available. Suitable for pedestrian traffic.

Options
-TSI	Trap Seal Insert	-91	Rough Bronze Body
-VP	Secured Grate, Vandal-Proof Screws	-92	Galvanized Cast Iron Parts
-2	Satin Finish Bronze Top
-49	3/4 Inch Primer Tap	-T	Threaded Outlet
-50	1/2 Inch Primer Tap	-X	Inside Caulk Outlet
-60	Backwater Valve	-Y	Hub Outlet w/Gasket, 2"-4"
-80	Perforated Stainless Steel Basket	-Z	No-Hub Spigot Outlet

Type #	PIPE SIZE	TYPE NO.	BxB1	X	Y	FREE AREA
30002	2	5R	5 x 8-7/8	1-7/8	3-1/4	14.9
30003	3	6R	5 x 13	1-3/4	3-1/4	20.0
30004	4	7R	5 x 17	1-7/8	3-1/4	22.4
		8R	5 x 21	1-7/8	3-1/4	47.0
