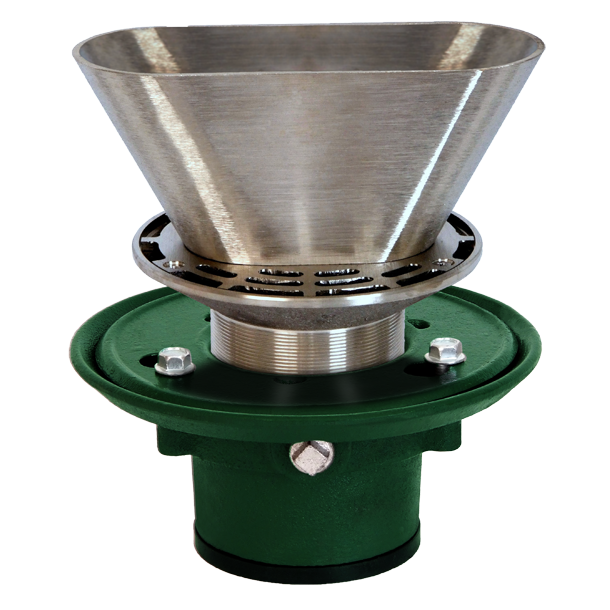

Floor Drain: C.I. Body w/7" Dia. Satin Nikaloy Strainer & Oval Funnel

Specification
30000-E3 Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy oval funnel strainer.

Application
For use in non-traffic areas where the oval funnel contains condensate drip from more than one source, and grate openings evacuate liquid spills from the surrounding floor, such as under commercial kitchen equipment.

Options
-ARE	Acid-Resisting Epoxy	-91	Rough Bronze Body
-J	Backwater Valve	-92	Galvanized Cast Iron Parts
-TSI	Trap Seal Insert
-VP	Secured Grate, Vandal-Proof Screws	-T	Threaded Outlet
-2	Satin Finish Bronze Top	-X	Inside Caulk Outlet
-49	3/4 Inch Primer Tap	-Y	Hub Outlet w/Gasket, 2"-4"
-50	1/2 Inch Primer Tap	-Z	No-Hub Spigot Outlet
-80	Perforated Stainless Steel Basket

Type #	PIPE SIZE	TYPE NO.	B	X	Y	FREE AREA
30002	2	7E3	7	1	2-5/8	18.25
30003	3
30004	4
