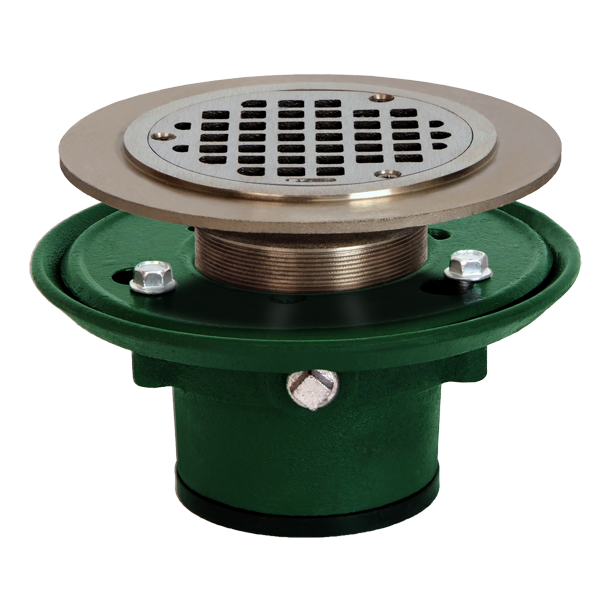

Floor Drain: C.I. Body w/Clamp Ring, Flange, Adjustable Nikaloy Strainer.

Specification
30000-AF Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy round strainer with tile flange.

Options
-ARE	Acid-Resisting Epoxy	-80	Perforated Stainless Steel Basket
-J	Backwater Valve
-TSI	Trap Seal Insert	-T	Threaded Outlet
-VP	Secured Grate, Vandal-Proof Screws	-X	Inside Caulk Outlet
-2	Satin Finish Bronze Top	-Y	Hub Outlet w/Gasket, 2"-4"
-49	3/4 Inch Primer Tap	-Z	No-Hub Spigot Outlet
-50	1/2 Inch Primer Tap

Type #	FREE AREA
30002-6AF	10.4
30003-6AF	10.4
30004-6AF	10.4
