Roof Drain: Small Sump & 9" Sq. Cast Iron Promenade Top

Specification

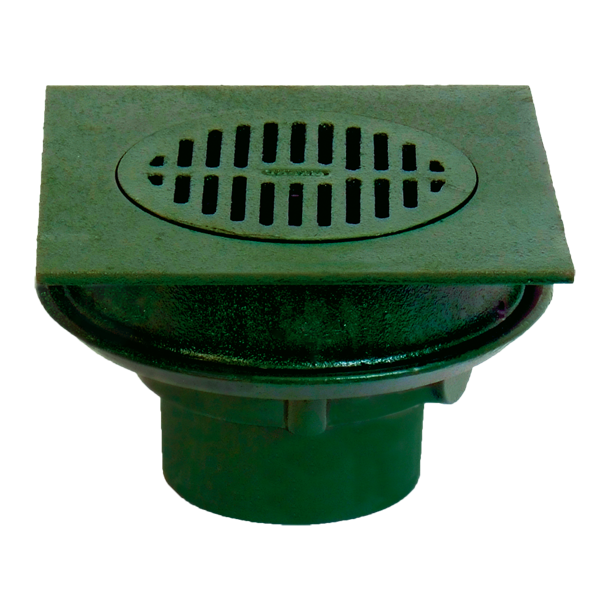

23730 Series coated cast iron Roof Drain, round pedestrian grate set in square secured frame, non-puncturing flashing collar with weepholes for 2" roof fill and small sump with wide roof flange and bottom outlet.

Application
Used on smaller sized promenade decks and roofs where foot traffic or light vehicles may be present. Smaller round grate set in a square frame provides ample free area for proper drainage with narrow slotted openings for pedestrian safety and to intercept debris. Flashing clamp holds the membrane or flashing securely to the drain body.

Options
-IRMAPerforated Stainless Steel Extension -50Satin Finish Nikaloy Top
-VPVandal-Proof -51Satin Finish Bronze Top
-1Deck Clamp Assembly
-12Extended Flashing Collar, Cast Iron -TThreaded Outlet
-12-20Extended Flashing Collar,Galvanized -XInside Caulk Outlet
-2Drain Receiver -YHub Outlet w/Gasket, 2"-4"
-20Galvanized Cast Iron Parts -ZNo-Hub Spigot Outlet
-3Deck Clamp Assembly & Drn Receiver -66No-Hub Side Outlet
-3CDrain Receiver and Drain Receiver Clips

Type # PIPE SIZE  LBS
23732 2 18
23733 3 18
23734 4 18
