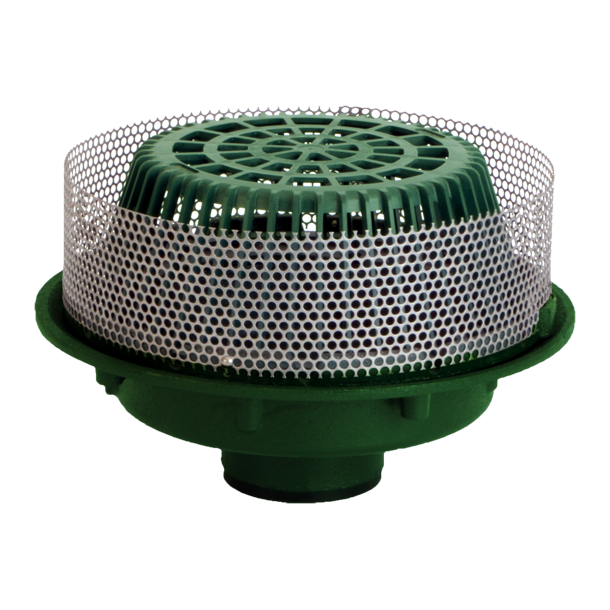

Roof Drain: Large Sump with -19 Stainless Steel Gravel Guard

Specification
21500-19 Series coated cast iron Roof Drain, large polypropylene locking dome, WEJLOC non-puncturing clamp ring with integral gravel stop and stainless steel perforated gravel guard and large sump with wide roof flange and bottom outlet.

Options
-AE	LEVELEZE Adjustable Extension	-22	Cast Iron Dome/Grate
-AER	Adjustable Extension using Threaded Rod/Hdwe	-23	Rough Bronze Dome
-ARE	Acid Resistant Epoxy Coated	-26	Aluminum Dome
-CR	Clamping Drain Receiver with Hardware	-3	Deck Clamp Assembly & Drn Receiver
-IRMA	Perforated Stainless Steel Extension	-3C	Drain Receiver and Drain Receiver Clips
-VP	Vandal-Proof	-33	S.S. Mesh Screen Covered Dome
-1	Deck Clamp Assembly	-4	Secondary Flashing Clamp (use with -AE only)
-1CP	Drain Receiver Clips	-6	Extra Wide Flange Drain Body, -X Only
-10	Fixed Ext Collar, CI (spec. ht.)
-10-20	Fixed Exn Collar, Galv. (spec. hgt.)	-T	Threaded Outlet
-16	Internal Waterguard 2"-8" Outlets Only	-X	Inside Caulk Outlet
-17	2 Inch High Solid Clamping Collar	-Y	Hub Outlet w/Gasket, 2"-4"
-2	Drain Receiver	-Z	No-Hub Spigot Outlet
-20	Galvanized Cast Iron Parts	-66	No-Hub Side Outlet
-21	Galvanized Cast Iron Dome Only

Type #	PIPE SIZE	WT LBS
21502-19	2	36
21503-19	3	37
21504-19	4	38
21505-19	5	39
21506-19	6	40
21508-19	8	42
21509-19	10	43
