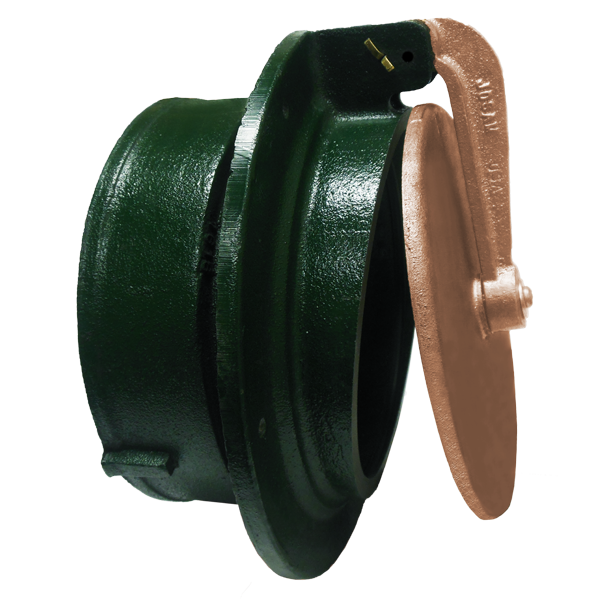

Backwater Valve: Terminal Type Swing-Check BWV w/Hub Connection

Specification
Series coated cast iron Backwater Valve, terminal type, bronze swing-check assembly with bolted cast iron seat, and hub connection.

Options
-15	Open Flap	-4	Bronze Seat

Type #	PIPE SIZE	B	C	D	E	F
67806	6	8-1/8	9-7/8	7-3/4	2-1/8	7/8
67808	8	10-1/8	15-3/4	11-1/2	4-1/4	1-1/4
