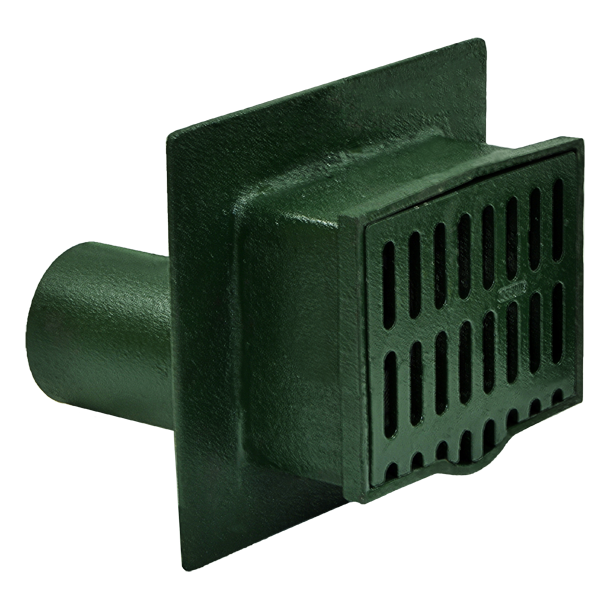

Backwater Valve: Combined Drain w/Swing-Check Type

Specification
Series coated cast iron Backwater Valve, pit type, bronze swing-check assembly, vertical inlet grate and spigot connection.

Options
-LBV	Less Backwater Valve	-2	Satin Finish Bronze Face
-VP	Secured Face, Vandel-Proof Screws	-25	Flashing Clamp Device
-1	Satin Finish Nikaloy Face	-5	Galvanized Cast Iron Parts

Type #	PIPE SIZE	B x B1	C x C1	D	E	F
67653	3	9-5/16 x 7-5/8	12-3/4 x 10-7/8	5-1/8	1-1/8	13
67654	4	9-5/16 x 7-5/8	12-3/4 x 10-7/8	5-1/8	1-1/8	13
67656	6	11 x 8-7/8	14-3/4 x 12-3/8	5-1/2	1-1/8	14
