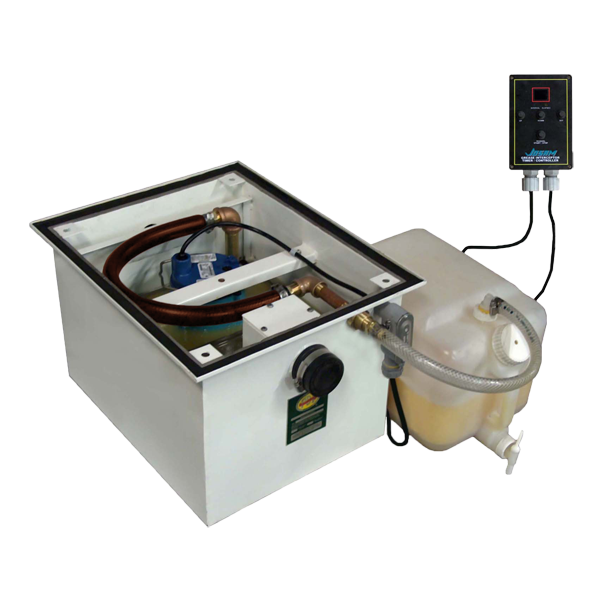

Grease Removal Device, On-Floor Type

Specification
JOSAM Series 60100H-GRD series epoxy coated fabricated steel grease interceptor, no-hub connections, internal trap, removable diffuser baffle, gasketed non-skid center bolt cover, flow control fitting and PDI seal of approval. Adjustable timer (1-99 days) controls internal pump for removal of grease to factory provided grease storage tank.

Options
-AC	Aluminum Cover	-SS	Stainless Steel Interceptor
-EXT	Extension > 6" (Per Inch Price)	-40	Cover Recess for Floor Finish
-HD	Heavy-Duty Cover	-61	Flange and Clamp Device

Type #	FLOW RATE	CAP. LBS.	PIPE SIZE
60104H-GRD	15	30	2
60105H-GRD	20	40	3
60106H-GRD	25	50	3
60107H-GRD	35	70	3
60108H-GRD	50	100	3
