Carrier: Vertical Double On-Stack, Close, No-Hub 4 in. Vent

Specification

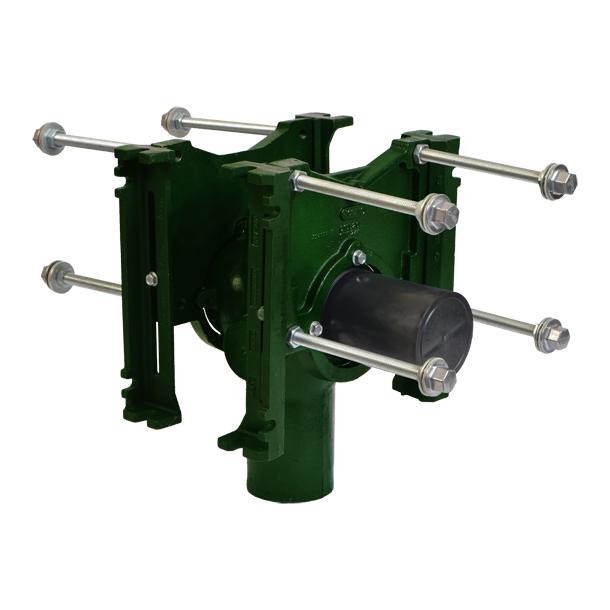

Series coated cast iron double vertical on-stack 4" no-hub fitting with 4" vent and universal close closet carrier bodies, for siphon jet closets, ABS extensions with integral test caps, buttress feet, plated hardware and neoprene fixture gaskets.

Application
For use with two siphon jet or blowout water closet fixture in no-hub pipe systems where a back-to-back compact on-stack fitting with 4 inch vent and vertical flow is desired.

Options
-VP	Vandal-Proof Trim	-30-2	C.I. Adj Ext w/Conn & Test Cap Assy
-XSD	Extra Special-Duty 1,000 lb Carrier	-45	Threaded Left-Hand Auxiliary Inlet
-1	Positioning Frame	-46	Threaded Right-Hand Auxiliary Inlet
-10	ABS Extension, through 10-1/2" Wall	-6	Supply Pipe Support - Galv
-24	For Flr-Mount,Back-Outl China Bowls	-6CU	Supply Pipe Support - Copper
-30	C.I. Adjustable Extension w/Connect
