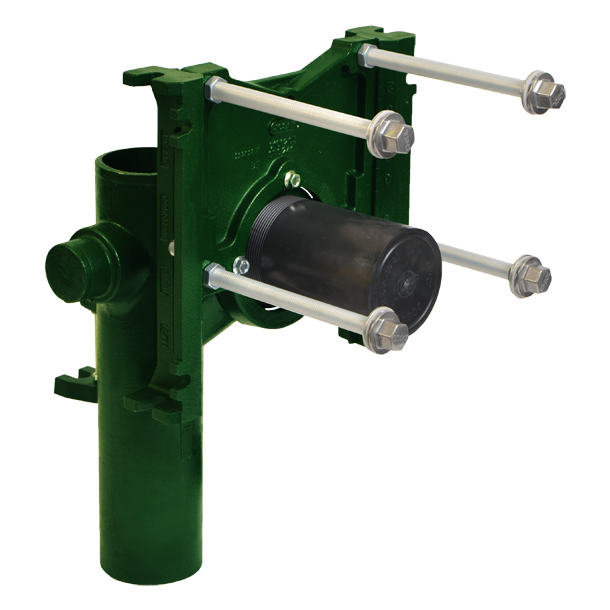

Carrier: Vertical Single Close w/4 in. Rh Offset, No-Hub, w/2 in. Aux. Inlet

Specification
Series coated cast iron single vertical offset 4" no-hub fitting with 2" right-hand vent and universal close closet carrier body, invertible for siphon jet or blowout closets, ABS extension with integral test cap, buttress feet, plated hardware and neoprene fixture gasket.

Application
For use with one siphon jet or blowout water closet fixture in no-hub pipe systems where a single compact offset fitting with 2 inch vent, optional 2 inch auxiliary inlet and vertical flow is desired.

Options
-VP	Vandal-Proof Trim	-30-2	C.I. Adj Ext w/Conn & Test Cap Assy
-XSD	Extra Special-Duty 1,000 lb Carrier	-50	No-Hub High Aux Inlet Opposite Vent
-1	Positioning Frame	-54	Threaded High Aux Inlet Oppos. Vent
-10	ABS Extension, through 10-1/2" Wall	-6	Supply Pipe Support - Galv
-24	For Flr-Mount,Back-Outl China Bowls	-6CU	Supply Pipe Support - Copper
-30	C.I. Adjustable Extension w/Connect
