Carrier: Vertical Single Close, On-Stack, Hub & Spigot 4 in. Vent

Specification

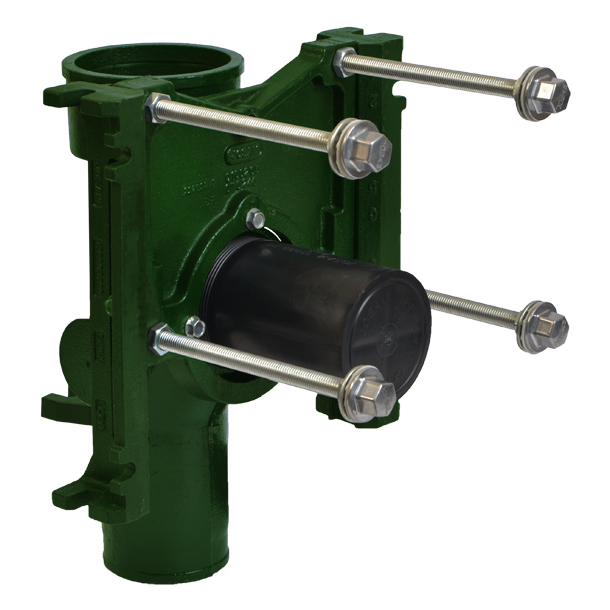

Series coated cast iron single vertical on-stack 4" hub and spigot fitting with 4" vent and universal close closet carrier body, invertible for siphon jet or blowout closets, ABS extension with integral test cap, buttress feet, plated hardware and neoprene fixture gasket.

Application
For use with one siphon jet or blowout water closet fixture in hub and spigot pipe systems where a single compact on-stack fitting with 4 inch vent and vertical flow is desired.

Options
-SD	Special-Duty 500 lb Carrier	-46	Threaded Right-Hand Auxiliary Inlet
-VP	Vandal-Proof Trim	-6	Supply Pipe Support - Galv
-1	Positioning Frame	-6CU	Supply Pipe Support - Copper
-45	Threaded Left-Hand Auxiliary Inlet
