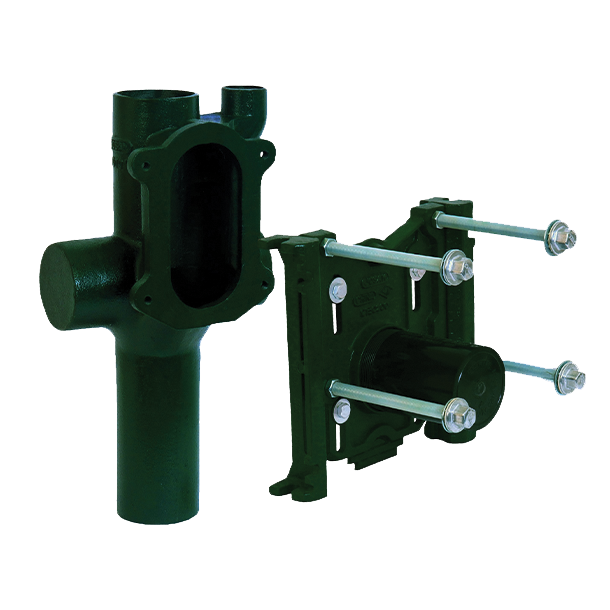

Carrier: on Stack Vertical Single Adjustable No-Hub

Specification
Series coated cast iron single vertical on-stack 4" no-hub fitting with 2" no-hub right-hand offset vent, adjustable carrier body, invertible for siphon jet or blowout closets, with ABS extension with integral test cap, pylon feet, anchor foot, plated hardware and neoprene fixture gasket.

Application
For use with one siphon jet or blowout water closet fixture in no-hub pipe systems where a single adjustable fitting with vertical flow is desired.

Options
-CR	Compression Carrier	-1	Positioning Frame
-D4	Double 4" No-Hub Branches	-10	ABS Extension, through 10-1/2" Wall
-HD4	Double 4" Hub Branches	-12"	12" ABS Extension
-HLH4	Left-Hand 4" Hub Branch	-24	For Flr-Mount,Back-Outl China Bowls
-HRH4	Right-Hand 4" Hub Branch	-30	C.I. Adjustable Extension w/Connect
-HS	Hub & Spigot	-30-2	C.I. Adj Ext w/Conn & Test Cap Assy
-LH4	Left-Hand 4" No-Hub Branch	-32	Carrier for Wide Chase Installations
-OR	O-Ring Carrier	-35	Closet Carr f/Wheelchair High Rough
-PAF	PF Pre-Fab	-49	No-Hub High Aux Inlet Under Vent
-PFG	Alternate Faceplate Gasket	-50	No-Hub High Aux Inlet Opposite Vent
-PS	Foam Sleeve for Extension	-53	Threaded High Aux Inlet Under Vent
-RH4	Right-Hand 4" No-Hub Branch	-54	Threaded High Aux Inlet Oppos. Vent
-SD	Special Duty 500lb Carrier	-58	Horizontal No-Hub Cast Long Barrel
-SDH	Special Duty 750LB Carrier	-6	Supply Pipe Support - Galv
-TB	Test Bracket	-6CU	Supply Pipe Support - Copper
-VP	Vandal-Proof Trim	-7"	7" ABS Extension
-XSD	Extra Special-Duty 1,000 lb Carrier
