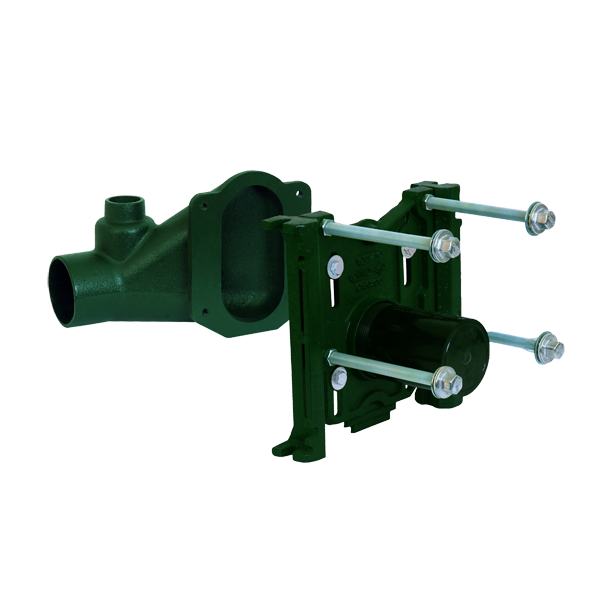

Carrier: Right-Hand Horizontal Single Adj. w/2" Vent

Specification
12683 Series coated cast iron single right-hand horizontal 3" no-hub fitting with 2" no-hub vent, adjustable carrier body, invertible for siphon jet or blowout closets, with ABS extension with integral test cap, pylon feet, anchor foot, plated hardware and neoprene fixture gasket.

Options
-AUX	Auxiliary Inlet	-1	Positioning Frame
-CR	Compression Carrier	-10	ABS Extension, through 10-1/2" Wall
-HS	Hub & Spigot	-12"	12" ABS Extension
-OR	O-Ring Carrier	-24	For Flr-Mount,Back-Outl China Bowls
-PAF	PF Pre-Fab	-30	C.I. Adjustable Extension w/Connect
-PFG	Alternate Faceplate Gasket	-30-2	C.I. Adj Ext w/Conn & Test Cap Assy
-PS	Foam Sleeve for Extension	-32	Carrier for Wide Chase Installations
-SD	Special Duty 500lb Carrier	-35	Closet Carr f/Wheelchair High Rough
-SDH	Special Duty 750LB Carrier	-58	Horizontal No-Hub Cast Long Barrel
-TB	Test Bracket	-6	Supply Pipe Support - Galv
-VP	Vandal-Proof Trim	-6CU	Supply Pipe Support - Copper
-XSD	Extra Special-Duty 1,000 lb Carrier	-7"	7" ABS Extension
