24200 Series

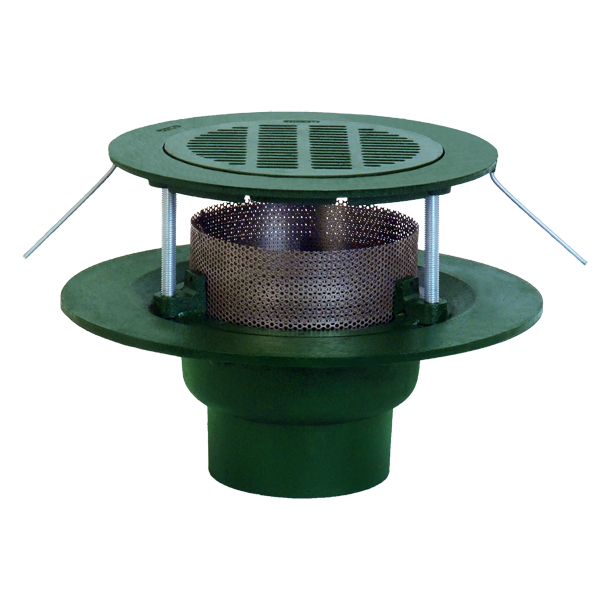

Promenade Drain: Removable S.S. Filter, Bonding Flg, C.I. Top

Specification
24200 Series coated cast iron adjustable ALL-LEVEL Roof Drain, round pedestrian grate set in round anchored frame leveled on adjustable threaded rods, removable perforated stainless steel filter, concrete forming and retaining ring, large sump with wideflange and bottom outlet inside caulk connection.

Application
