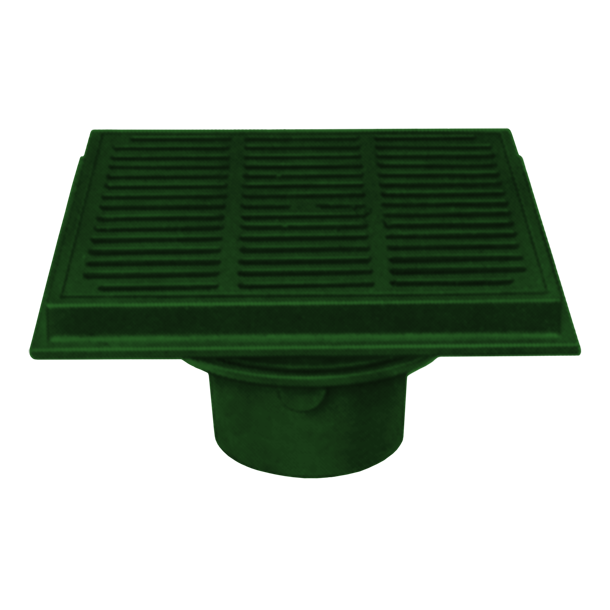

Floor Drain: 12" Square Top w/Heavy Duty Cast Iron Grate

Warning Cross Reference for MIFAB F1440-Y-Q is Josam 37800.


Specification
37800 Series coated cast iron Floor Drain with flashing flange, WEJLOC non-puncturing flashing collar, shallow body, weepholes, bottom outlet, square top, and heavy-duty loose-set grate.

Options
-TSITrap Seal Insert -7Ductile Iron Grate
-VPSecured Grate, Vandal-Proof Screws -92Galvanized Cast Iron Parts
-14Hinged Grate
-18Hinged Grate with Locking Device -TThreaded Outlet
-19C.I. Undergrate w/Satin Fin Nik Top -XInside Caulk Outlet
-20C.I. Undergrate w/Satin Fin Brz Top -YHub Outlet w/Gasket, 2"-4"
-493/4 Inch Primer Tap -ZNo-Hub Spigot Outlet
-501/2 Inch Primer Tap -66No-Hub Side Outlet

Type # PIPE SIZE  LBS
37802 2 58
37803 3 58
37804 4 58
